AXIAL SMOKE EXHAUST FAN F300 – PRODUCT FEATURES

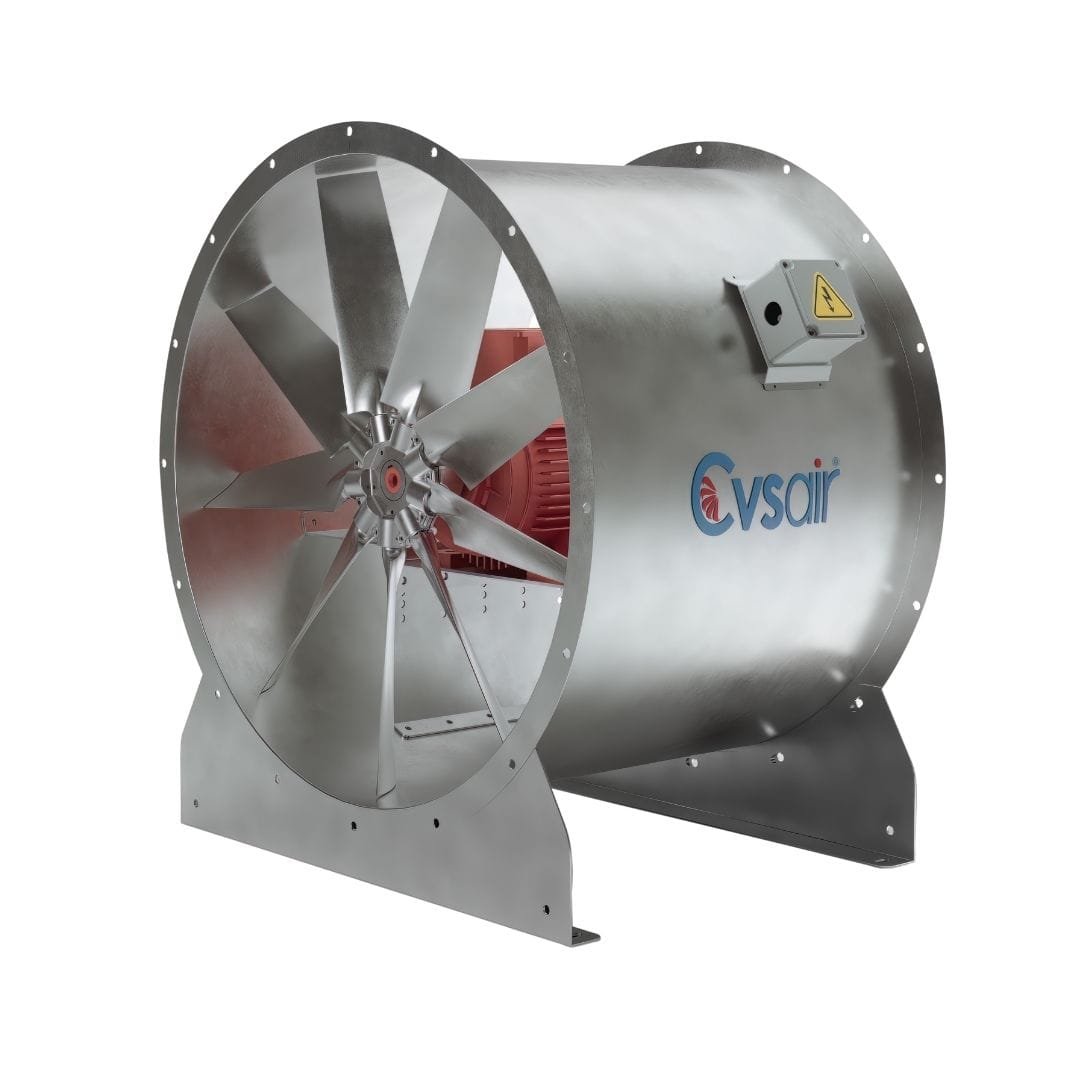

Axial Smoke Exhaust Fan F300

Double speed motor for daily ventilation and in case of fire

Galvanized steel sheet casing ( TS EN ISO 1461 )

Outside terminal box

Highly efficient IE2 motor with Class-H insulation and IP55 protection

Aerofil-sectioned aluminium blades

Adjustable blade angle for maximum efficiency

There-phased motor is suitable to operate with frequency inverter

EN 12101-3 certified

Axial Smoke Exhaust Fan F300
Download PDF File
Exhaust fans are used for cleaning polluted air which is created by humans, vehicles, or any other machines. The polluted air brought to the exit point by jet fans or ventilation ducts is taken out with the help of exhaust fans. The rate of toxic substance in the air is reduced and the clean air is obtained. Exhaust fans can be used in industrial buildings, parking lots, airports, tunnels, etc.

Cvsair smoke exhaust fans are manufactured with galvanized ( zinc ) coating.  Zinc layers are oxidized more quickly than the metal layers therefore the fan metal is not damaged. This fact prevents the formation of rust and corrosion. With help of aerofoil-section blade friction forces are optimized. Blade angle is adjustable for the maximum airflow efficiency. Three-phased motors are suitable to operate with frequency invertors. Airflow starts from the motor side and finishes at the impeller side. All parts are produced according to the EN 12101-3 certificate. Highly efficient IE2 motors with Class-H insulation and IP55 protection can be designed to operate dual sided on demand.

Axial smoke exhaust fans are designed for working outside with either vertical or horizontal placement.  Vibration dampeners are mounted during installation process and the dampeners are also produced with connection flanges which enables to use silencer with or without pods. 60 Hz option is available.

For more information about the products, please check out the presentation prepared by Cvsair.
